EHDAS GHODRAT NIRO

Different types of Low voltage switchgears in RITTAL designs- model TS8 and SIVACON- model 8PT (fixed and with drowable) have been produced by EHDAS GHODRAT NIRO Company. For completeness of the productions and to meet customer’s need, this company offers designing and manufacturing for all types of wall mounted panels, out door panels and desk panels.

*

.

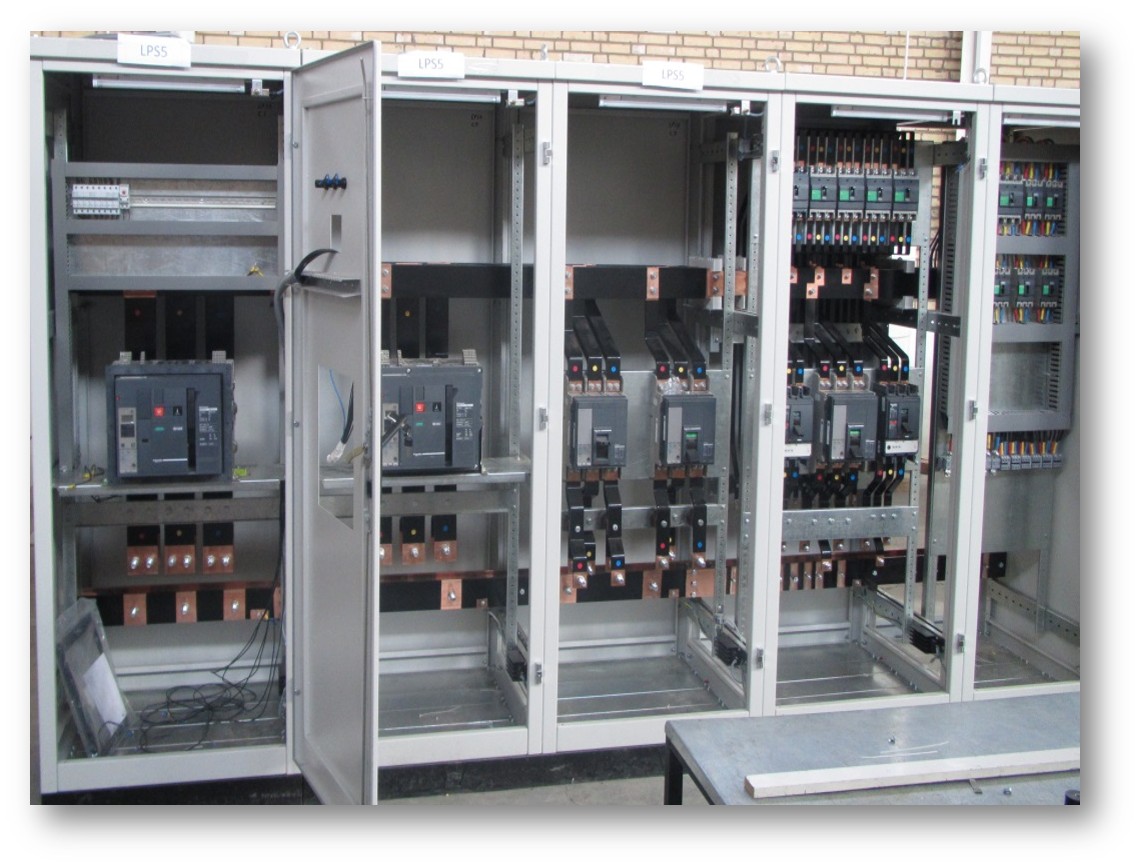

Fix Modular and Withdraw able Power Distribution Panels



*

This type of panels is designed by the technical knowledge of skeleton of Sivacon and Rittal Panels and in the designing of power distribution panels, tips such as Rated Current, Short Circuit Current, IP Code of the panel, access from back or front and etc. are considered. Also based on the demands of the customers these panels can be designed as Fix, Modular, and even Withdraw able.

Technical specifications of these panels are briefly shown below:

*  Rated Voltage:   400V

*  Rated CurrentUp to:   4000A

*  IP CodeIP:   Up to 66

*

*

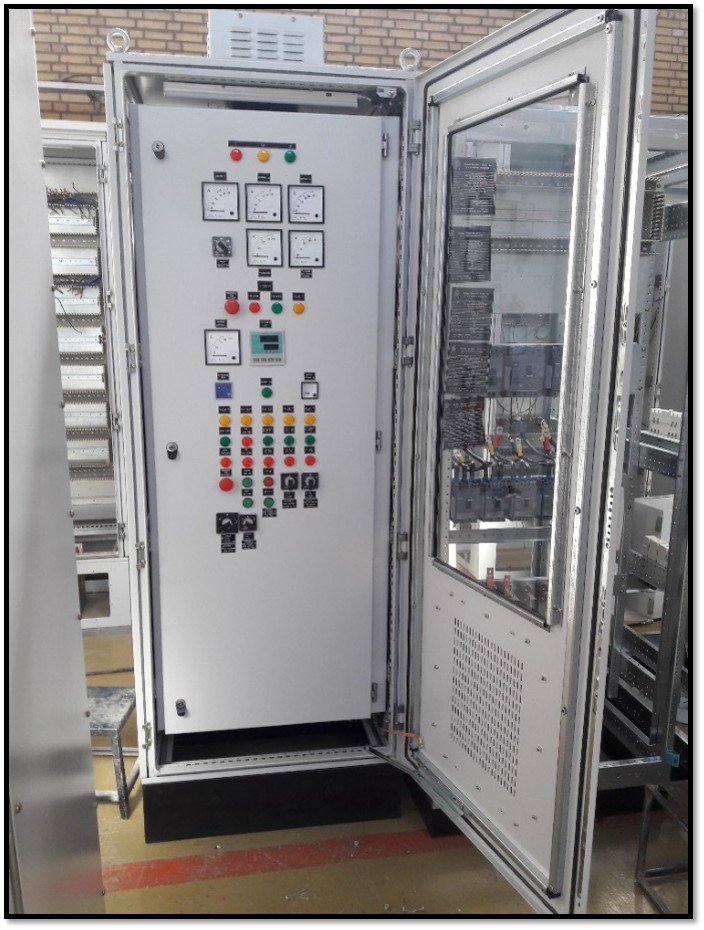

Fix and Withdraw able Motor Control Center Panels (MCC)





*

The fix type of this product can be easily executed by using the Rittal and Sivacon panels. In withdraw able panels from the type SIVACON-8PT and by using SIMARIS SIVACON software, all of the components and mechanical equipment and etc. have a report and the plans are extracted and then by the mechanical production unit these components are produced and at last based on the output assembly plans of SIMARIS, the components are assembled. According to the fact that the production of these panels are completely based on the outputs of the SIMARIS software, it can be acknowledged that all of the Sivacon panels standards that belong to the Siemens Company in Germany, are controlled and observed.

Technical specifications of these panels are briefly shown below:

*  Rated Voltage:   400V

*  Rated CurrentUp to:   4000A

*  IP CodeIP:   4X, 54

*

*

Fix, Modular and Withdraw able Capacitor Bank Panels



*
EHDAS GHODRAT NIRO Company has presented a method in the field of designing and producing Withdraw able Capacitor Bank panels where the draws can be easily Racked IN and Racked Out, where the method is unique in its field and increases the capabilities of use. Actually it can be said that presenting a method like this has not been done before in no company, neither in this country nor other countries and is the exclusive of Ehdas Ghodrat Niroo Complex. The interested people can visit it in the exhibition inside the factory.

Technical specifications of these panels are briefly shown below:

*  Rated Voltage:   400V

*  Capacity in each CellUp to:   500 KVAR

*  IP CodeIP:   4X , 54

*  Equipped with Dry Capacitors and Gas filled Capacitors

*

*

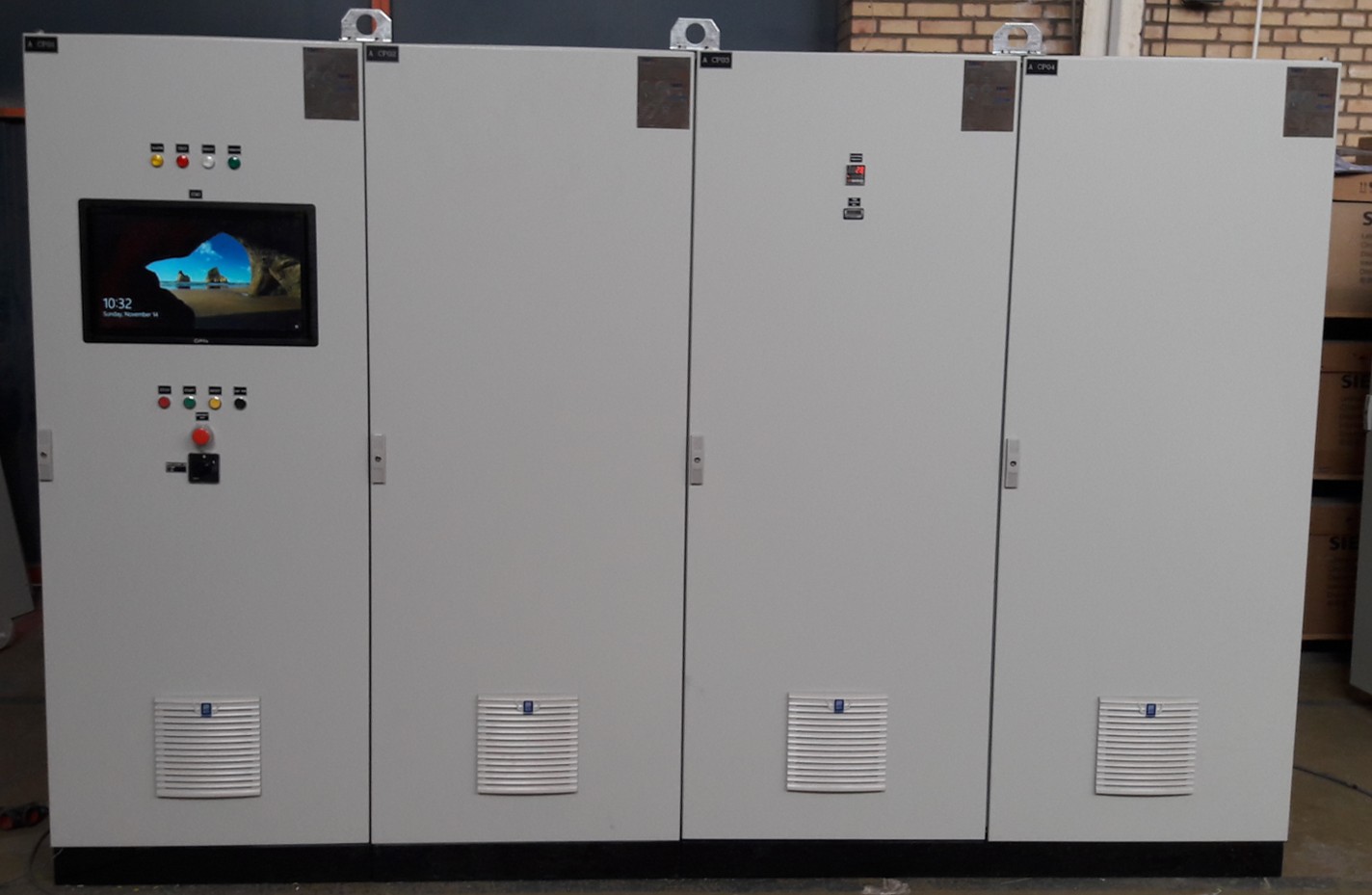

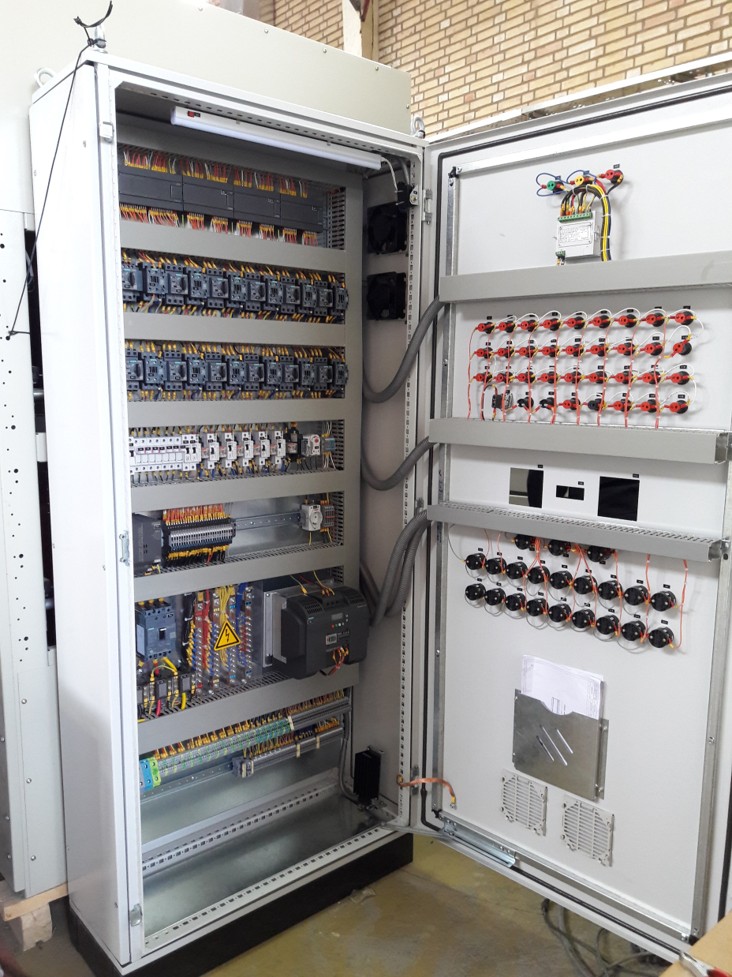

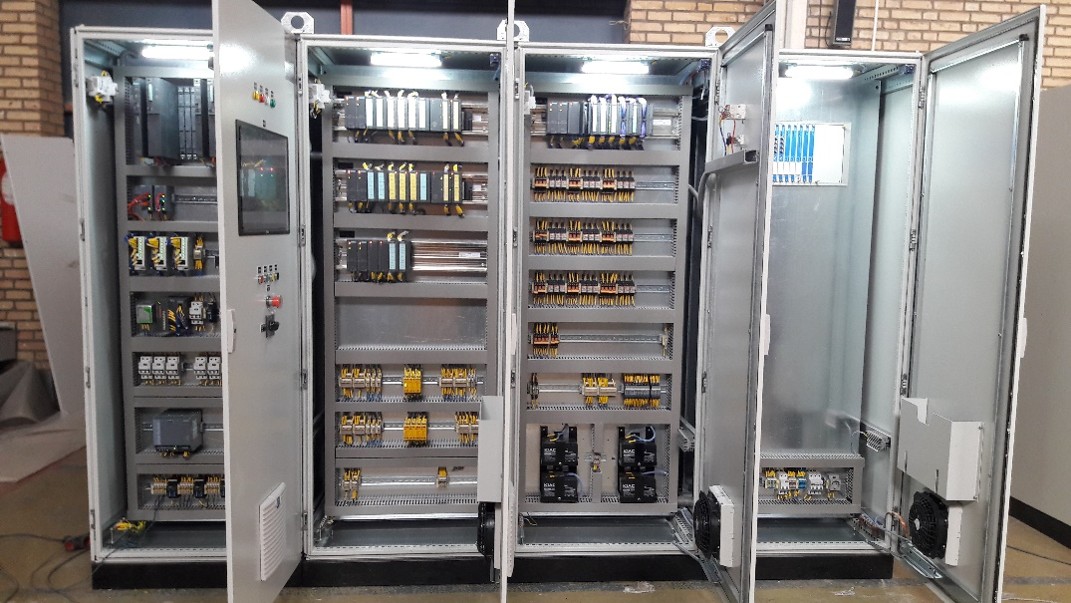

Industrial Automation Panels including HMI, PLC and etc



*

EHDAS GHODRAT NIRO Company has experts and promising staff who have the ability to design and produce Industrial Automation Panels with equipment such as HMI, and PLC or by using DRIVE and SOFT STARTER and have bright resumés in this field. The structure of the skeleton of these panels are mostly based on the Rittal type of panels which are more suitable for these panels.

In addition to the production of the panels related to this field, this complex is able to execute an Automation project completely and from the beginning to the end, weather from the hardware aspect or from the software aspect.

*

*
