EGN Wall Mounted Up to IP66

EGN Wall-Mounted Enclosures

EGN wall-mounted enclosures are designed for environments where mechanical strength, environmental protection, and long service life are essential. With protection levels up to IP66, these enclosures ensure full safety against dust ingress and heavy water exposure.

.
Key Features & Benefits
Standards Compliance:
Designed and tested according to IEC 61439, IEC 62208, IEC 60947, and IEC 60529 (IP Code).
Wide Application Range:
Suitable for low-voltage power distribution up to 250A, control panels, automation systems, machinery, and general installations.
IP66 Protection:
PU-injected gasket ensures superior sealing for industrial, dusty, humid, and outdoor environments.
Selectable Materials:
Carbon steel, galvanized steel, and SS304 stainless steel options for corrosive conditions.
Durable Powder Coating:
Applied according to ASTM D3928 (adhesion) and ASTM D5228 (impact resistance).

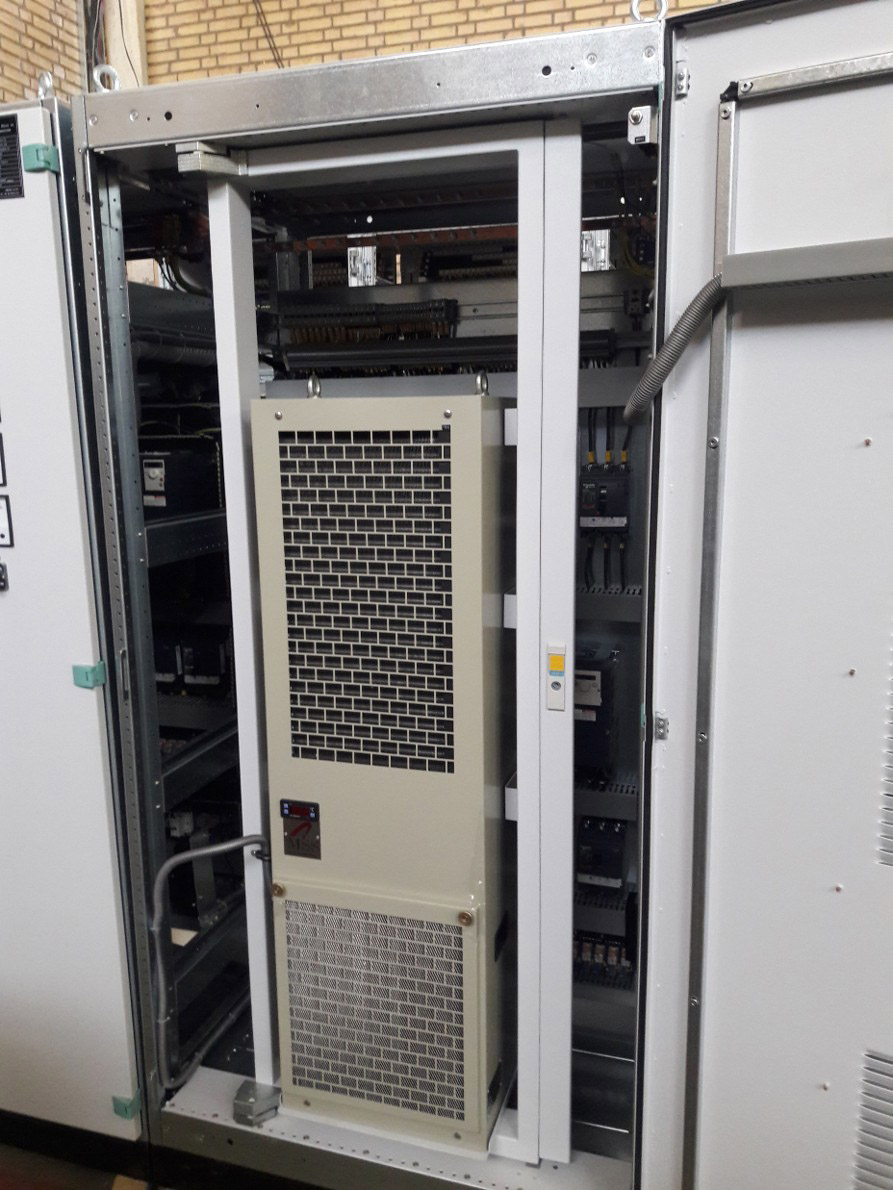

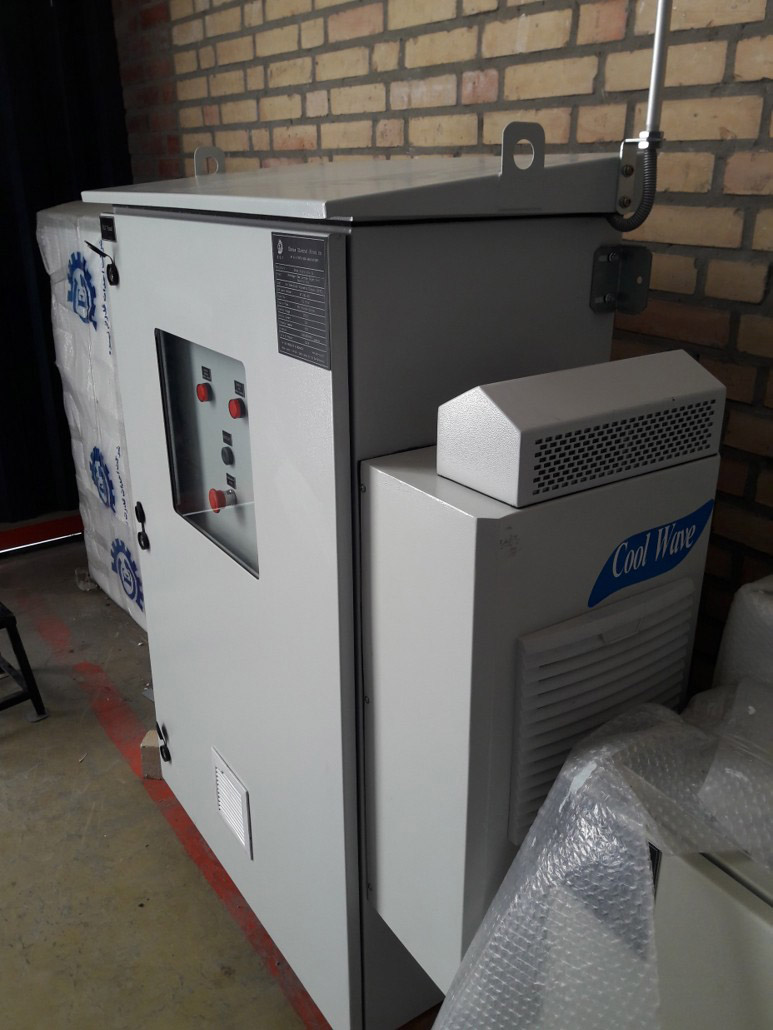

Efficient Thermal Management:
Compatible with fans, filters, and ventilation systems; ideal for small VFDs and soft starters.
Flexible Dimensions:
Available in a wide range of sizes for small to medium applications.
